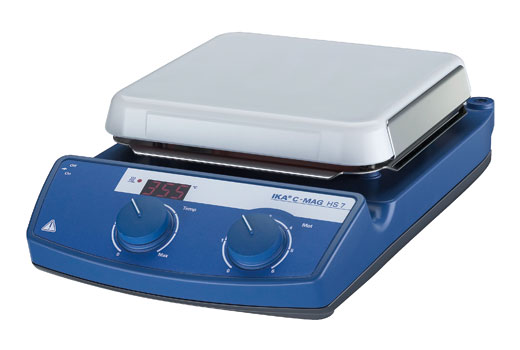

Magnetic-Stirrers-C-MAG-HS-7-IKAMAG

New magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.

• Powerful motor for stirring quantities of up to 10 l (H2O)
• Fixed safety circuit of 550 °C
• Hot Top indicator >> hot surface warning to prevent burns!
• Exact temperature setting via digital display (LED)
• Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
• Digital error code display
• Elevated control panel for protection against leaking liquids

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	10 l
Stirring quantity max. (H2O)	10 l
Motor rating input	15 W
Motor rating output	1.5 W
Speed display	scale
Speed range	100 – 1500 rpm
Stirring bar length max.	80 mm
Heat output	1000 W
Heating rate (1 l H2O in H15)	5 K/min
Heating temperature range	50 – 500 °C
Heat control	LED
Heat control accuracy	10 ±K
Speed control	scale 0 – 6
Fixed safety circuit	550 °C
Connection for ext. temperature sensor	ETS-D5
Control accuracy with sensor	3 ±K
Temperature constancy in medium	3 ±K
Set-up plate material	ceramic
Set-up plate dimensions	180 x 180 mm
Dimensions (W x H x D)	220 x 105 x 330 mm
Weight	5 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative moisture	80 %
Protection class according to DIN EN 60529	IP 21
Voltage	230 / 120 / 100 V
Frequency	50/60 Hz
Power input	1020 W Magnetic-Stirrers-C-MAG-HS-7-IKAMAG
